Description

---

This kit allows the Anytone578 faceplate to be remotely mounted from the body. This does not require permanent changes to the radio, and the kit may be reversed.

The kit includes all cables, screws, components, and detailed instructions to complete the installation in less than 30 minutes. Please follow appropriate safety precautions during installation.

At a high-level, the installation process involves:

1. Removing all power and antenna from radio
2. Removing screws
3. Unplugging stock cables
4. Plugging in new converter cables
5. Lightly hand-tightening screws
6. Plugging in the connecting cable

---

OPTIONS:

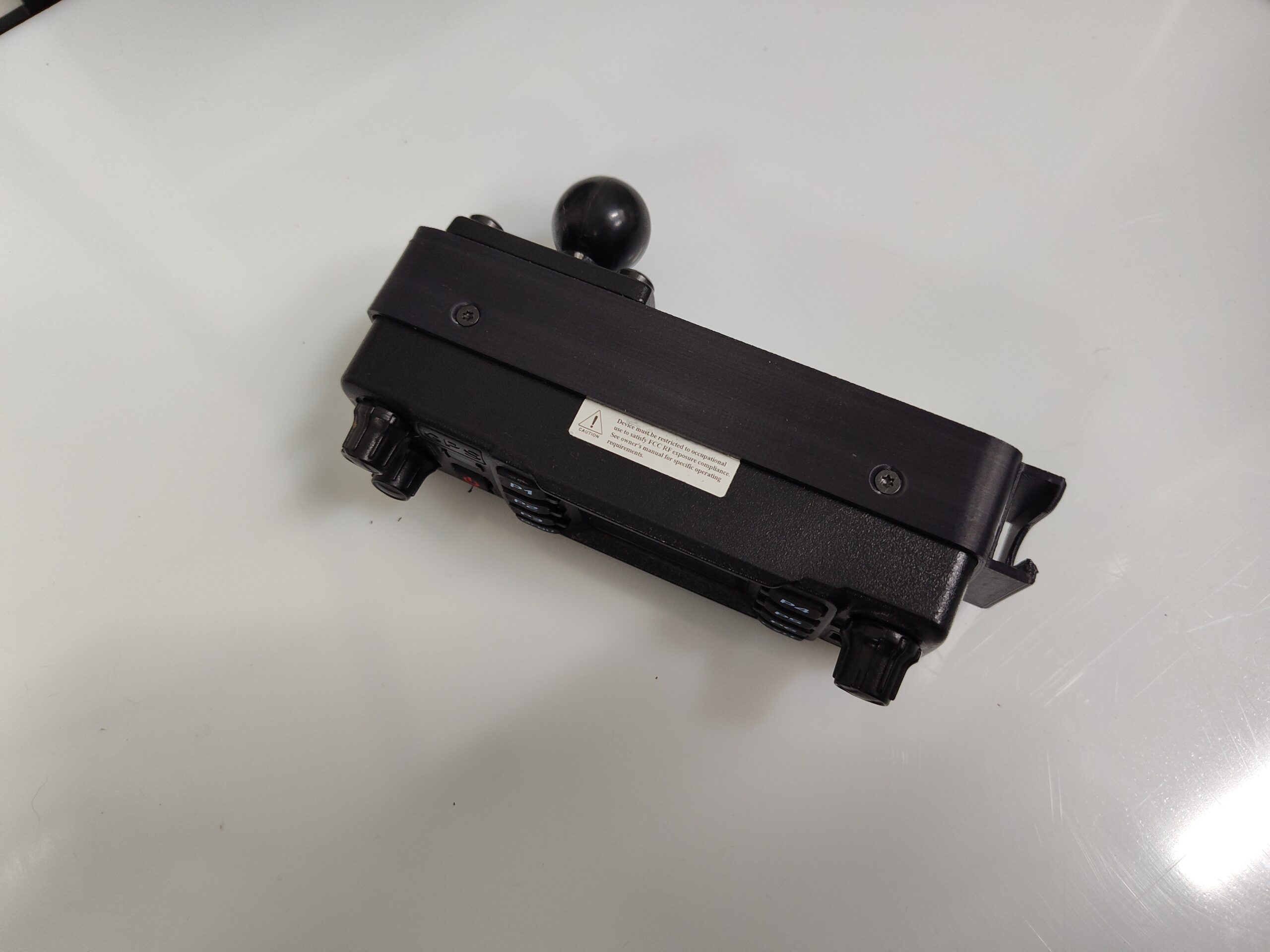

RAM Mount: If you would like a 1″ Ram Ball w/AMPS mount to be included in your order. Will be pre-installed.
—-If you don’t want the RAM mount, you will still receive the SCREWS used to attach an AMPS mount.

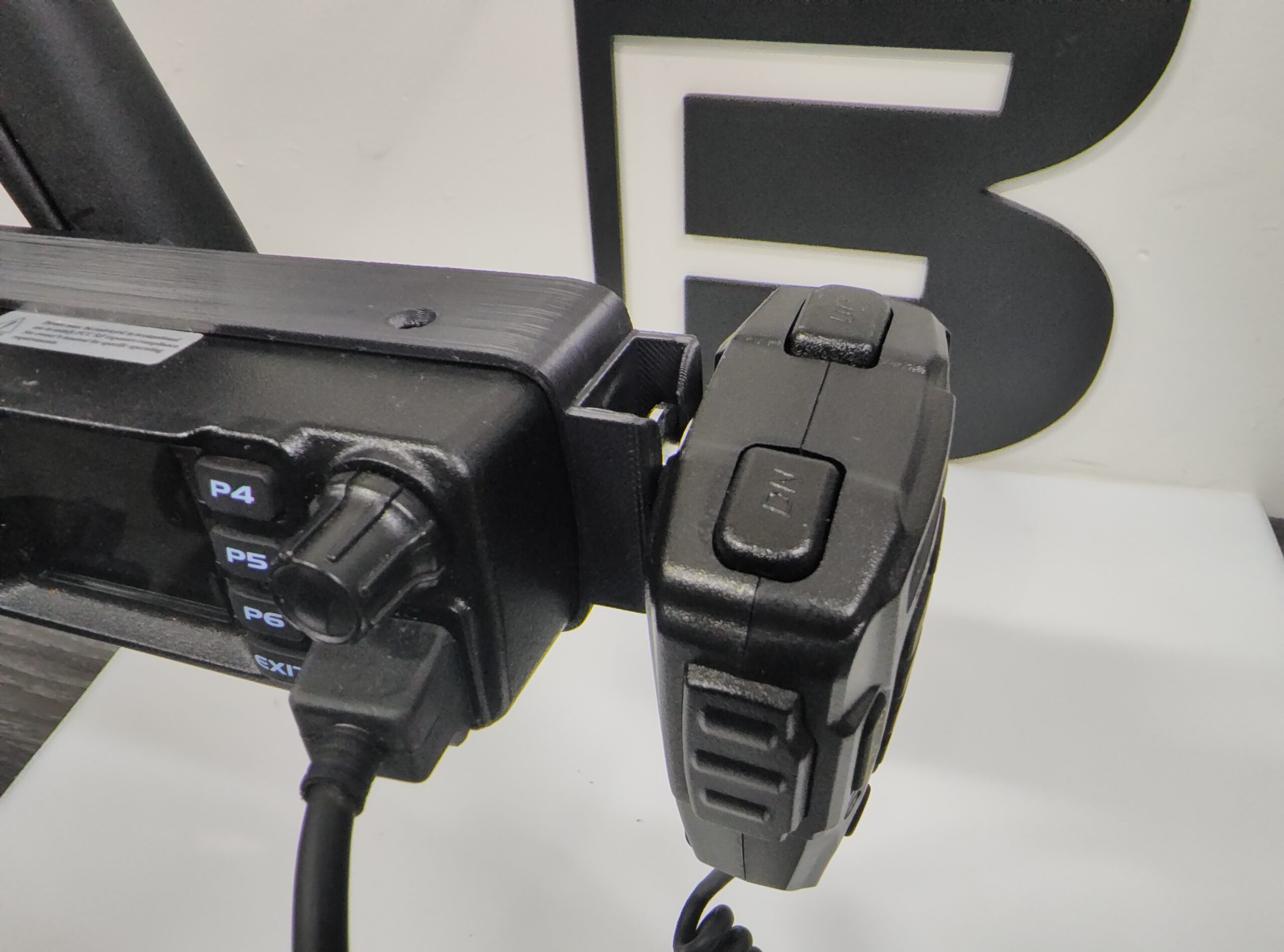

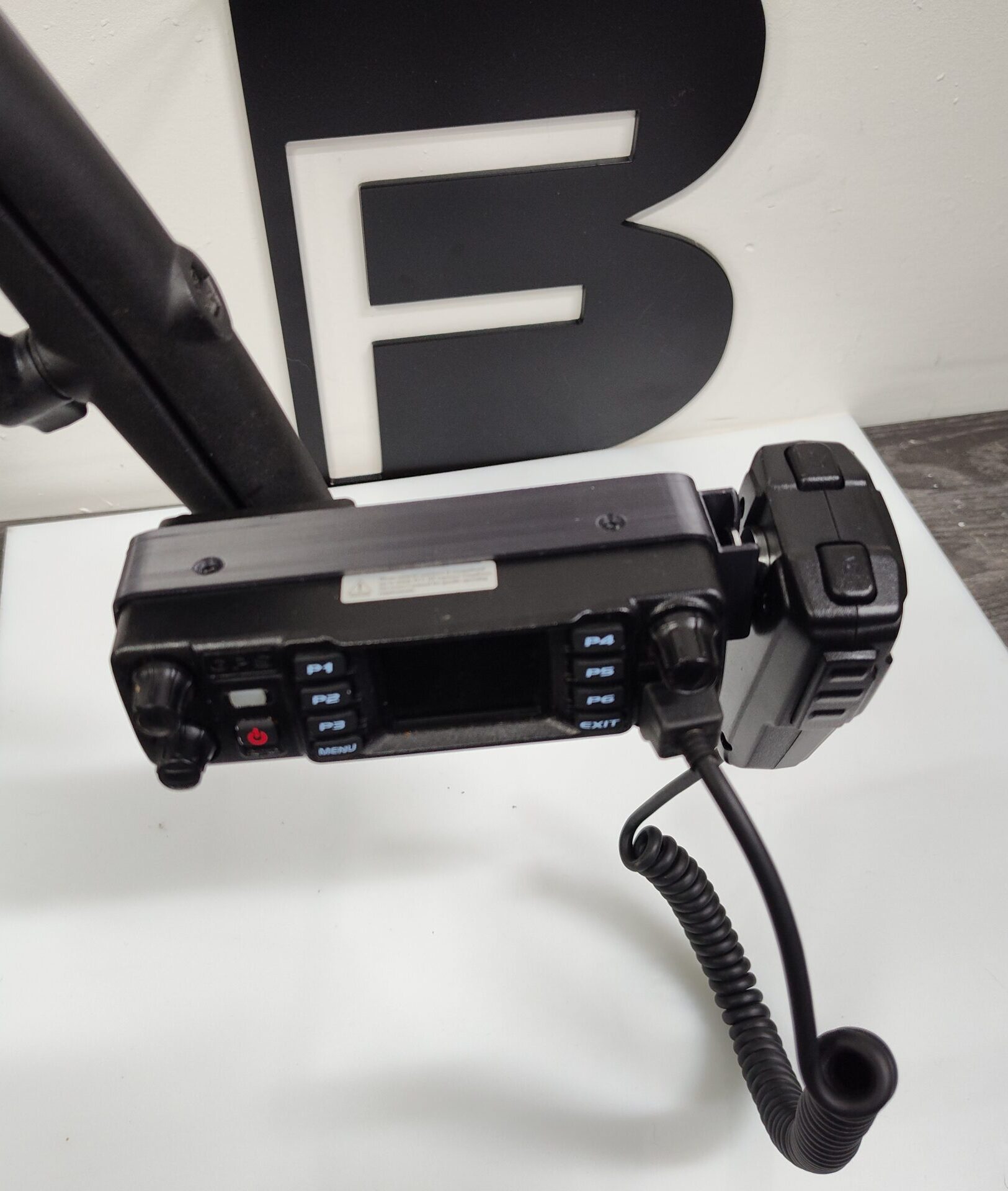

Integrated Mic Holder: Please reference photos and dimensions to make a decision.

Cable Length: Maximum cable length for the 578 PLUS (see FAQ below) is 36 Inches, so the included length for this kit is 36″.  You may purchase 10 Inch increments for 5$ each but this longer length will only work for PRO or previous Hardware v1.00 models.





FAQ

Frequently Asked Questions

Why is there a limit on cable length?

The primary driver for cable length is the way the Anytone578 processes audio between the Head unit and the Body of the radio. The analog audio amplifier is on the Body of the radio, so it needs to pass analog audio over any cables between the two. As such, there is eventual resistance issues that limit cable length.

For the Hardware 1.00 Modules (PRO and earlier) that is around 56Inches.

For the Hardware 1.10 Models (PLUS and later) that is around 36 inches.

How can I tell if I have a PRO or a PLUS? What’s my maximum cable length?

Check the Hardware version in your radio settings.

Hardware 1.00 = PRO and earlier = 56″

Hardware 1.10 = PLUS and later = 36″

This seems different than the first kit (or the one I bought earlier) What gives?

Thanks for noticing!

Case Changes:

We tightened up some tolerances in the pieces and needed to solve some consistency issues for the PLUS models.

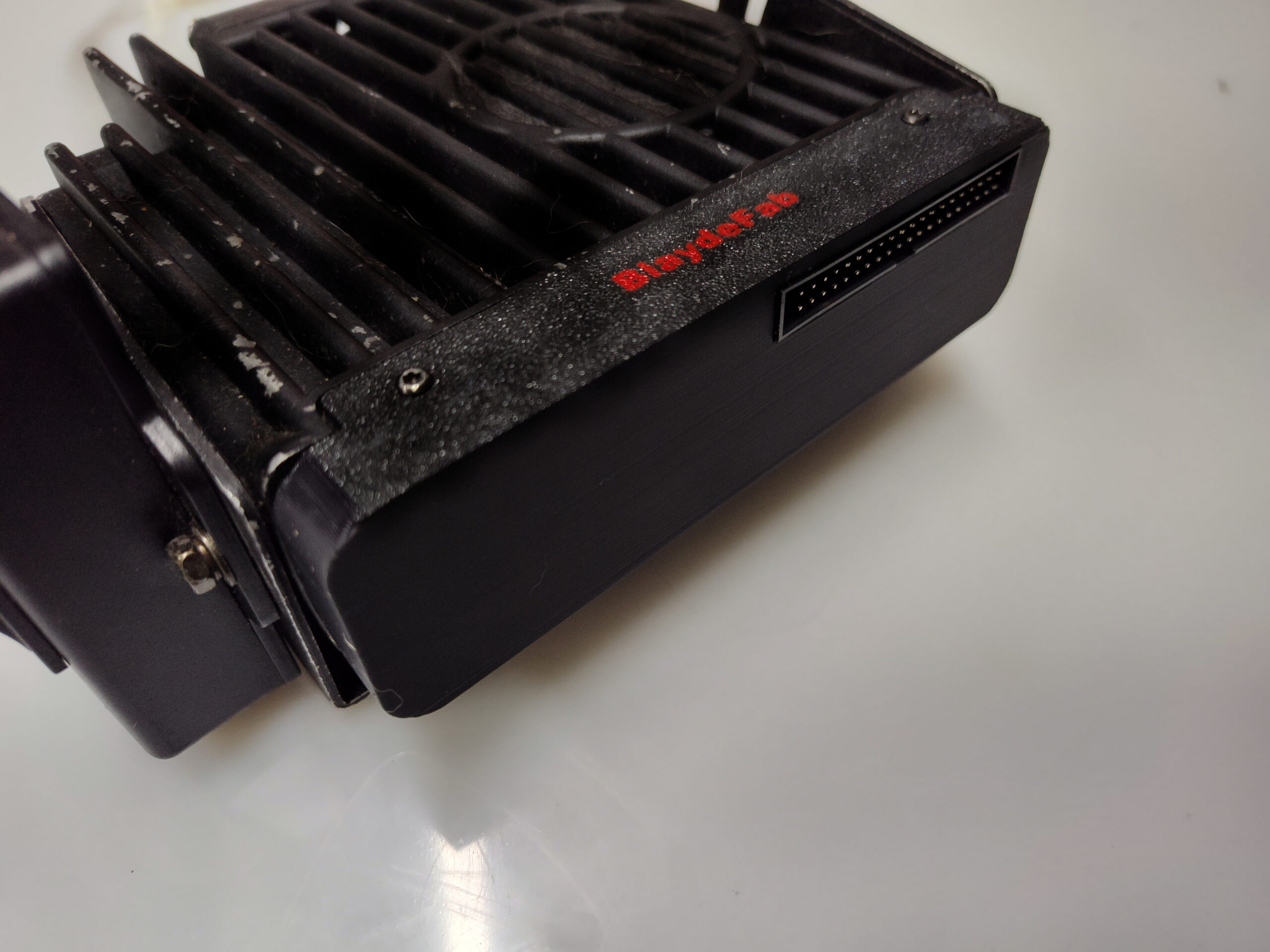

We couldn’t source a GPS module to fit in the ‘smaller’ cutout in the Hardware 1.10 boards, and we didn’t want to have too many on-shelf stock differences. SO we redesigned the case to include the GPS holder so it is the same solution for BOTH kits, and they will both benefit from a 18x18GPS module instead of lessening the performance of the kit for PLUS users.

Price model / Cable length:

This is intended to make inventory management and customer purchasing easier. The old base price was 100USD for the kit with 56″ of cable and a GPS antenna. The new kit is 90USD for the kit with 36″ of cable and a GPS antenna. This kit works for all 578s, but if you want you can upgrade to a 56″ cable for 10 dollars and you’re back to the ‘original deal’. This just makes it fair for the PLUS users so they pay for the cable that works, and not full price for less material.

In the end, you have a more consistent product at the same price!

P.S. If you are reading this and would like the new V2 case, send us an email and we’ll see what we can do!

---

Please allow 2-3 weeks for delivery as supply chain of optional parts or processes may be delayed.

Please reach out to save on shipping if purchasing more than Quantity: 5
If you would like a bulk order please reach out to info@blaydefab.com for timeline and estimates.
